OBD2 Adapters · Model KS-8812

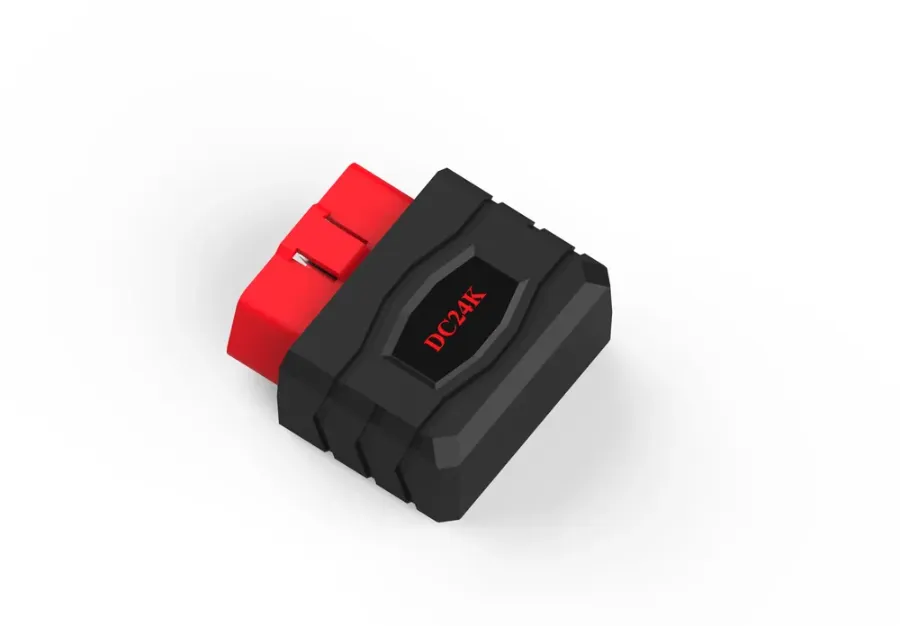

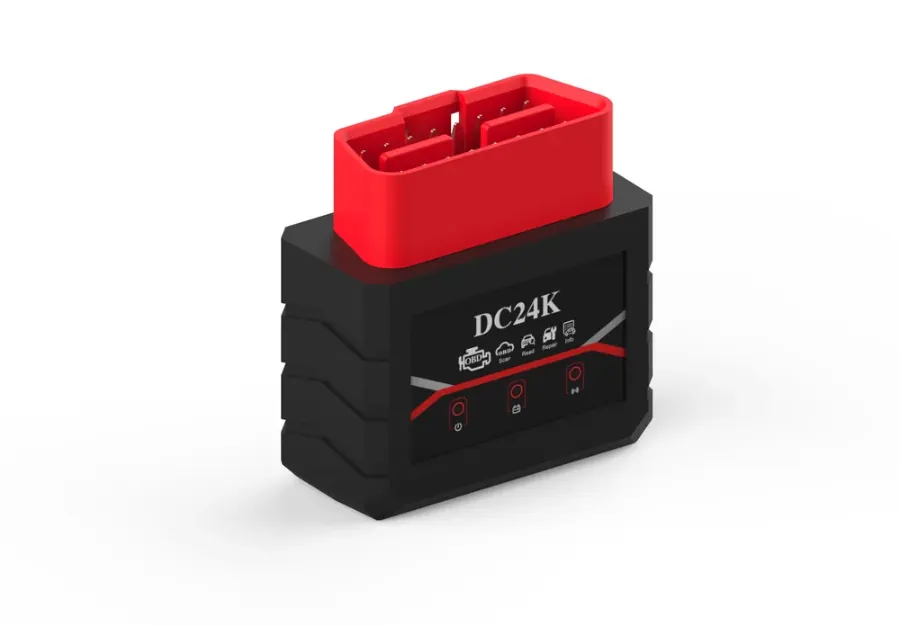

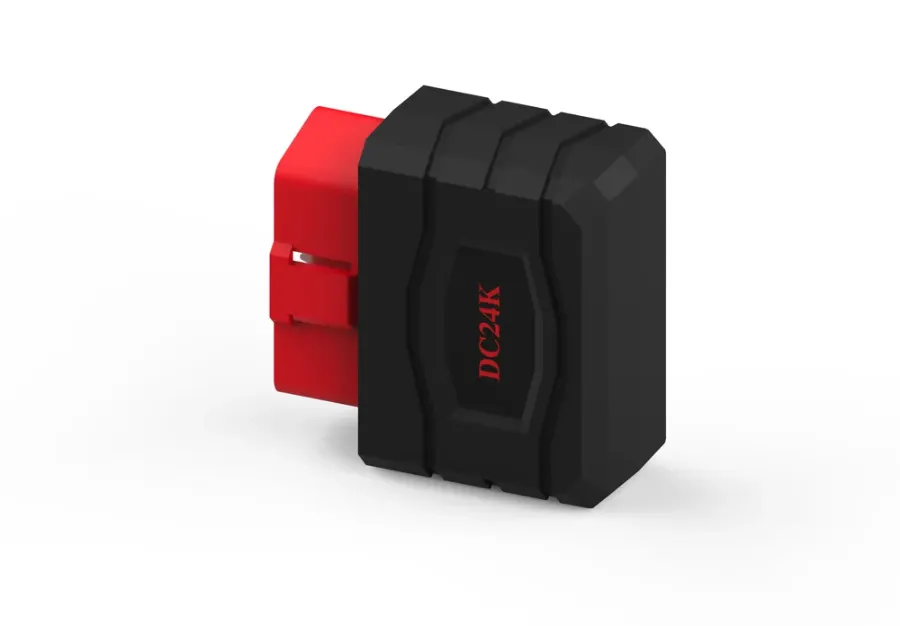

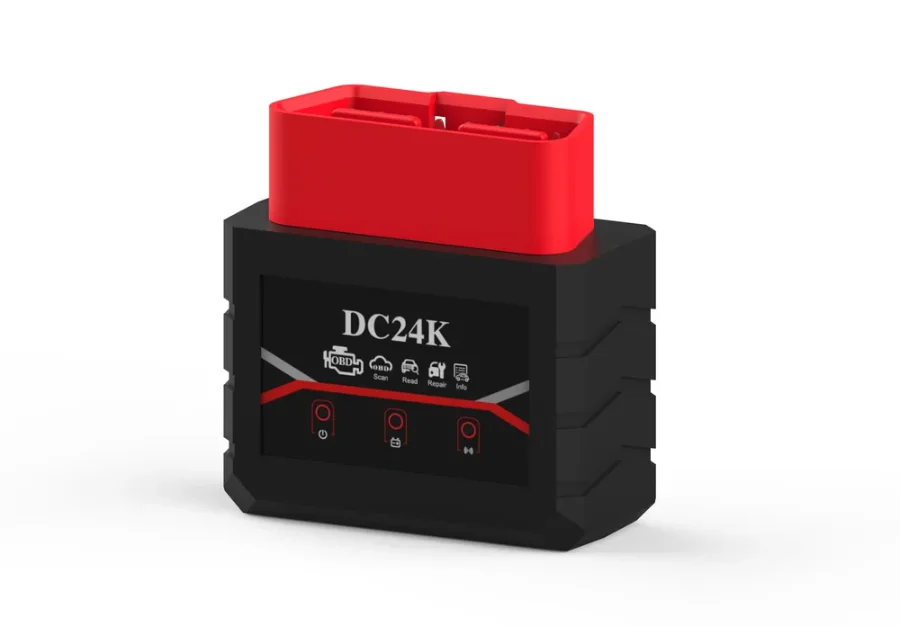

KS-8812 DC24K Tire-Tread Shell Bluetooth 5.4 OBD2 Adapter

An OBD2 adapter in a patented tire-tread housing that stands out in a crowded category. Bluetooth 5.4 for iOS and Android, PIC25K80 chip and 9–30V input, in black and red.

Patented tire-tread housing design
Bluetooth 5.4 for iOS and Android
Fully compliant with OBD II / EOBD
9–30V input for 12V and 24V gasoline vehicles and some diesels
DC-DC supply up to 95% efficient, independent CAN controller, MCU and radio

Custom logo MOQ1,000 pcs

Carton250 pcs

CertificationCE · RoHS

Neutral samples available before custom orders.

Specifications

Full spec sheet and certificates are sent with your quote.

Highlights

Live data: RPM, timing, fuel trim, coolant, consumption, voltage, freeze frame, MIL, HUD mode, trip analysis
Works with mainstream third-party OBD apps · upgradable firmware

Supported protocols

ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11-bit ID, 500 kbaud)
ISO 15765-4 CAN (29-bit ID, 500 kbaud)
ISO 15765-4 CAN (11-bit ID, 250 kbaud)
ISO 15765-4 CAN (29-bit ID, 250 kbaud)
SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPW (10.4 kbaud)
SAE J1939

Model	DC24K (KS-8812)
Chip	PIC25K80
Connection	Bluetooth 5.4
Systems	iOS, Android
Operating voltage	9–30V
Power / current	320 mW / 20 mA
Colors	Black / red
Product size	5.0 × 5.3 × 2.45 cm
Weight	25.4 g net
Package size	Adapter
In the box	Adapter
Certification	CE · RoHS
Carton	250 pcs · 50 × 31 × 35 cm
Custom brand MOQ	1,000 pcs (color, box, logo sticker)

Works with

Live engine data on the car screen

Pair this adapter with one of our CarPlay AI boxes and drivers see engine data on the factory display. Sell the two as a bundle for a higher order value.
